Most Aussie sheds are built first, wired second, and lit last. That's why the best shed lighting Australia can offer isn't always the brightest kit you can find, but the one matched to how you actually use the space. A garden shed where you grab a shovel once a fortnight needs different lighting to a 25m² workshop shed where you build furniture on weekends.

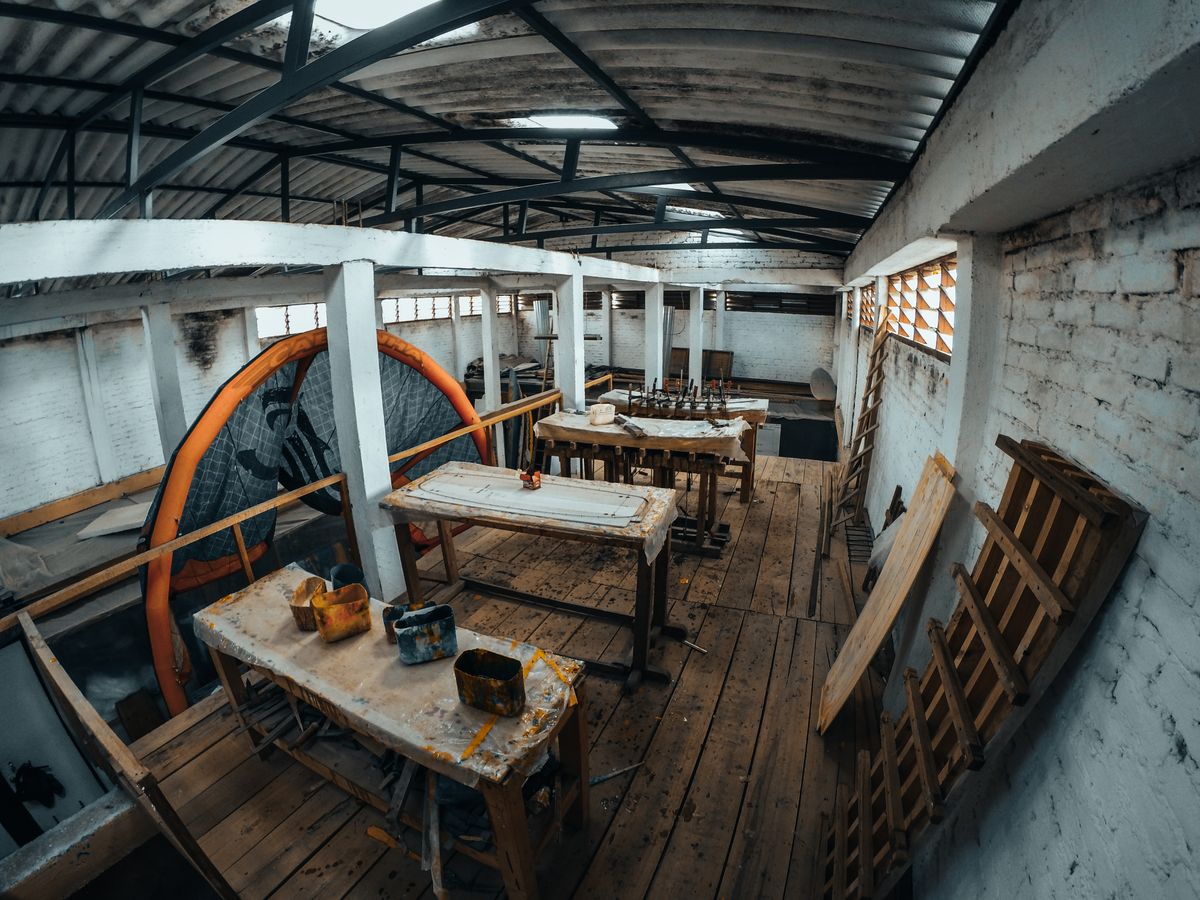

Typical: one batten and dark corners across the shed.
With Hex Lights: two grid systems light a similar steel shed.
The Problem: Why Most Aussie Sheds End Up Underlit
Most underlit sheds follow one of three common patterns: a single LED batten in the middle of the ceiling, an old bulb on a pull cord, or one flood light angled from a corner. Each creates the same problem: the centre is bright enough, but the corners and benches sit in shadow, and you end up working by torch on your phone.
Sheds are harder to light than garages for three structural reasons. Ceilings are lower, usually 2.2 to 2.6 metres. Walls are often dark Colorbond or untreated timber, which reflects far less light than the painted walls of a garage or office. And most Aussie sheds have no insulation, so summer ceiling temperatures on uninsulated Colorbond easily sit above 50°C, which cooks cheap plastic-housing lights from the inside.
Common Aussie Shed Lighting Problems
Before we get into product specs, here are the shed lighting problems that come up most often. If any of these sound familiar, this article is written for you.
- My shed only has one GPO and no ceiling rose. Standard Aussie sheds are wired for one double power point near the door. Running new cables means a sparky and a wall cavity, so most shed owners would rather plug in.
- Summer heat melts my lights. Uninsulated Colorbond ceilings in Queensland, NT, and inland NSW regularly hit 50°C to 55°C. Plastic-housing LED kits warp, flicker, or drop off the ceiling. Only aluminium-housing fixtures with proper heat dissipation survive.
- I can't see what I'm doing on the workbench. A single batten in the centre of the shed throws deep shadows under shelves and over benches. Workshop tasks like sanding, soldering, or paint matching need even, shadow-free coverage that no single fixture can deliver.
- Colour matching is a nightmare. Staining timber or mixing 2K paint under a cheap low-CRI LED means the finish looks different in daylight. Colour Rendering Index below 80 makes reds look muddy and greens look grey.
- Cheap marketplace kits often don't meet AS/NZS. Light fittings sold into Australia must carry SAA or RCM compliance. Many cheap hexagon kits sold on marketplace sites skip this step, which can leave you with a non-compliant fitting if anything goes wrong.
- My shed has a pitched roof and I don't want dim corners. Sheds with ceilings above 4m, like converted barns or high-clearance workshops, need suspension kits to drop lights to the optimal working height, roughly 3m above the floor. Surface-mount kits alone lose too much output to the roof cavity.
Who We Are: HexSpace, Australia's Hexagon Lighting Specialist
HexSpace hexagon lighting is an Australian company built specifically for the AU and NZ market. We design our kits for Australian conditions rather than reselling generic, uncertified kits. Our hexagon kits are SAA and RCM certified for Australian electrical standards and built with aluminium housing to handle Aussie shed conditions where summer ceiling temperatures regularly exceed 50°C.
Our team works with garage owners, workshop builders, detailing shops, home gym owners, barbershops, and commercial electricians across Australia and New Zealand. Our kits go into garages, workshops, studios, detailing shops and rural sheds on both sides of the Tasman. That experience feeds directly into our product range and the advice we give in articles like this one.
What We Do: Purpose-Built Hexagon LED Kits for Aussie Sheds
We focus on hexagon lighting. HexSpace designs and supplies modular hexagon LED lighting kits that surface-mount or suspend from shed, garage, workshop, gym, and studio ceilings. Every kit uses the same core components: aluminium housing for heat dissipation, high-CRI LEDs for true colour, a long 3-pin design with an earth wire for extra electrical safety, SAA and RCM certification on the range, and a 50,000+ hour rated lifespan.
Our six core shed and workshop hexagon kits cover every common Aussie shed size, from a 6m² garden shed up to a 40m² commercial workshop.
| HexSpace kit | Footprint | Best for shed area | Typical Aussie use case |
|---|---|---|---|
| 5-Grid LED System | 2.4m x 1.65m | 6 to 10m² | Small garden shed, tool shed, home gym corner |
| 8-Grid LED System | 2.4m x 2.6m | 10 to 14m² | Hobby shed, small detailing bay, barber station |
| 11-Grid LED System | 3.3m x 2.4m | 14 to 18m² | Weekend workshop, single-bay studio |

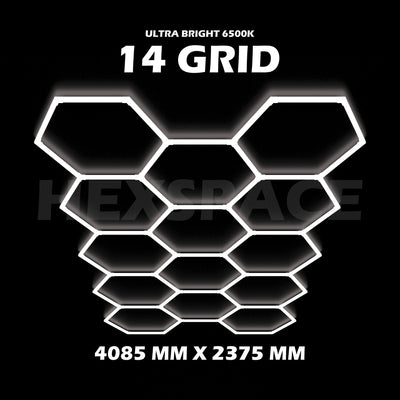

| 14-Grid LED System | 4.1m x 2.4m | 18 to 25m² | Single-bay garage workshop, woodworking shed |
| 23-Grid LED System | 4.2m x 3.9m | 25 to 35m² | Double-bay workshop, detailing studio |
| 39-Grid LED System | 5.3m x 5.0m | 35m² and up | Large commercial workshop, showroom, multi-bay shed |
For sheds that don't fit neatly into one kit footprint, you can pair two kits. A 14-grid plus a 5-grid covers a 30m² shed that's long and narrow. Two 23-grid kits light a 70m² commercial workshop. Pairing layouts and anchor spacing are covered in our installation documentation.
How We Solve Each Shed Lighting Problem
Here's how the HexSpace kit range maps onto the pain points above, one by one.
1. Lumen Output Matched to Your Shed Size
Aussie shed lighting design starts with lumen output per square metre. Because Colorbond and timber sheds reflect far less light than painted rooms, our design guidance sizes up. The figures below are HexSpace design guidance for Australian sheds, not numbers taken from a standard. For formal lighting design, a lighting designer works to the AS/NZS 1680 series.
| Task type | Target lux (HexSpace design guide) | Design lumens per m² (shed) |
|---|---|---|
| Storage only | 80 to 160 lux | 200 lm/m² |
| General DIY | 300 to 500 lux | 400 to 600 lm/m² |
| Workshop and bench tasks | 500 to 1,000 lux | 1,000 to 1,500 lm/m² |
| Detailing, painting, fine inspection | 1,000 to 2,000 lux | 1,500 to 2,000+ lm/m² |
| Shed size | Storage only | General DIY | Workshop / bench | Detailing / paint |
|---|---|---|---|---|
| 6m² (2m x 3m) | 1,200 lm | 3,600 lm | 9,000 lm | 12,000 lm |
| 12m² (3m x 4m) | 2,400 lm | 7,200 lm | 18,000 lm | 24,000 lm |
| 18m² (3m x 6m) | 3,600 lm | 10,800 lm | 27,000 lm | 36,000 lm |
| 25m² (5m x 5m) | 5,000 lm | 15,000 lm | 37,500 lm | 50,000 lm |
| 40m² (4m x 10m) | 8,000 lm | 24,000 lm | 60,000 lm | 80,000 lm |
2. Colour Temperature: 6500K Daylight by Default
For most Aussie sheds we recommend 6500K as the default. It is the colour temperature we sell the most of, and the one that actually performs best under real shed conditions. 6500K daylight-white delivers the crisp, neutral light you want for sanding, cutting, soldering, paint mixing, and general detail work. It also matches natural daylight, so the shed feels like an extension of outdoors rather than a dim cave. HexSpace hexagon kits ship in four separate colour options: 3000K warm white, 4000K neutral white, 5000K cool white, and 6500K daylight. Unless you have a specific reason to soften the tone (for example, a hybrid office-shed or display room), pick 6500K.
For colour-critical work such as workshops, paint bays, craft rooms and detailing, look for a high Colour Rendering Index (CRI). HexSpace hexagon kits use LEDs with a CRI above 90, so timber grain, paint colour, and metal finish read true under the light.
3. Install Height: Surface-Mount at 4m or Lower, Suspend Above
Install height is the factor most Aussie shed guides miss. Use this rule of thumb:
- 4m ceiling or lower: surface-mount the kit directly to the ceiling. Most Aussie backyard and workshop sheds fit this category, so flush mounting is the default and easiest install.
- Above 4m (pitched-roof sheds, converted barns, high-clearance commercial workshops): use the suspension wire kit and drop the lights down. The optimal photometric working height for hexagon lights is roughly 3m from the floor, which gives the brightest even spread without losing output to the ceiling cavity or creating glare.
Our kits support both plug-in and hardwire installation. Kits with a single power lead come with a plug lead as standard, so once the grid is assembled and fixed in place, you can plug it into a power point and switch it on. How a kit connects depends on its size and your space, so ask us about the power setup for the kit you choose. If you want the lights hardwired into your wiring, that must be done by a licensed electrician to meet AS/NZS 3000:2018 (Wiring Rules).
Paired 11-grid kits in a larger workshop shed. Good choice when the space doubles for storage and bench work.
4. Aluminium Housing for Hot Uninsulated Ceilings
Our entire range runs on aluminium housing, not plastic. Aluminium conducts heat away from the LED driver, which is the component that actually fails in hot sheds. Plastic housings trap heat, which shortens LED lifespan well below the rated 50,000+ hours. In a Queensland summer shed, you'll notice the difference within the first year.
5. Plan the Power for Sheds With One GPO
Many Aussie sheds have one power point near the door and no ceiling rose, so plan the power before you choose a kit. Ask us about the power setup for the kit you are looking at, and use a licensed electrician if you want the lights on a wall switch or wired into a circuit.
6. SAA and RCM Compliance for Insurance and Safety
Our hexagon kits are SAA and RCM certified. These are the key compliance marks Australian regulators and insurers look for on light fittings. Many hexagon kits sold on marketplace sites into Australia skip this step, which can leave you with a non-compliant fitting if something goes wrong. It's one of the most important reasons to buy from an Australian-based specialist rather than an anonymous marketplace seller.
Why Choose HexSpace Over Uncertified Kits or Batten Upgrades
Shed owners usually weigh HexSpace against three alternatives: LED battens from the hardware store, LED panels from an electrical wholesaler, or cheaper hexagon kits from an online marketplace. Here's how each compares.
| Option | Best for | Watch out for |
|---|---|---|
| LED batten (1.2m) | Storage sheds, single-task lighting | Hard shadows under shelves and benches |
| LED panel (600x600) | Converted office sheds, flat low ceilings | Needs a grid ceiling or tricky surface-mount |
| Uncertified hexagon kit (marketplace) | Tight budget, non-critical spaces | Usually no SAA/RCM; plastic housing fails in heat; no Aussie warranty recourse |
| HexSpace hexagon system | Workshop, studio, gym, and mixed-use sheds 8m²+ | Higher upfront cost than batten; worth it when you work in the shed regularly |
We sit in the same price bracket as quality commercial lighting, not the bottom of the marketplace. That reflects the aluminium housing, the compliance work, the Aussie-based warranty, and the fact that every kit is sized for Australian shed conditions. If your shed is a lightly used storage space, a pair of LED battens is a cheaper and perfectly valid answer. If your shed doubles as a workshop, detailing bay, gym, studio, or commercial space, a HexSpace hexagon system is built for the job.
Three Common Aussie Shed Setups and How to Light Them
Three shed types cover most Aussie sheds. Each calls for a different kit and mounting approach.
Small backyard storage shed, roughly 6 to 8m². A 2.5m x 3m timber shed used for garden tools. A single 5-grid kit (2.4m x 1.65m footprint) is usually enough to find tools at 6am and carry out light DIY tasks.
Weekend workshop shed, roughly 18 to 22m². A 3m x 6m Colorbond shed lit for weekend metalwork or woodworking. An 11-grid (3.3m x 2.4m) or 14-grid (4.1m x 2.4m) sits well across the centre. Ceilings on this kind of shed are usually 2.4 to 2.8m, so surface-mount directly to the ceiling and you are done. Aluminium housing is important here because summer ceiling temperatures on uninsulated Colorbond regularly sit above 50°C.
Large mixed-use workshop or commercial shed, 30m² and up. A 4m x 8m shed that handles storage, bench work, and a bike or car bay. The 23-grid (4.2m x 3.9m) is usually the right single kit; step up to the 39-grid (5.3m x 5.0m) for larger commercial workshops. If the shed has a pitched roof taller than 4m, use the suspension wire kit to drop lights to around 3m above the floor for the cleanest spread. Full anchor and wire-drop spacing sits in our installation guide.
Industrial LED Shed Lights for Commercial and Farm Sheds
If you are comparing industrial LED shed lights for a commercial workshop, farm shed, or storage unit, the same rules apply at a larger scale. Plan for the workshop band or above, 1,000 to 1,500 lumens per square metre across the whole floor, so racking aisles and machinery bays stay evenly lit rather than just the bench line. For spans beyond a single kit footprint, run multiple 23-grid or 39-grid systems in rows and keep the spacing consistent between them. Pitched industrial roofs above 4m call for the suspension wire kit, dropping the grids to roughly 3m above the floor for the cleanest spread. For three-phase sites or any hardwired circuit, use a licensed sparky per AS/NZS 3000.
Off-Grid and Low-Draw Shed Lighting
HexSpace hexagon kits run on 240V mains power, so they are not built for 12V or 24V battery and solar systems. For a shed with no mains power, look at low-voltage LED strips or battens made for battery and solar setups, or ask an electrician about running power to the shed.
10 Shed Lighting Ideas for Australian Sheds
Once the size is right, these ideas make the biggest difference to how a shed feels and works.
- Light the bench, not just the middle of the roof. Centre the grid over where you work, so your shadow falls behind you instead of across the job.
- Use one large grid instead of several small fittings. A hexagon grid lights the space from many points at once, so benches, shelves and corners all get light.
- Add a small kit over the storage wall. A 2-Grid or 3-Grid over racking means you are not hunting for tools in the shade of the main light.
- Match the colour temperature to the job. Choose 6500K daylight for a working shed and 5000K cool white for a hobby room or home gym shed.
- Drop the lights under a high roof. If the roof is above 4 metres, hang the grid on suspension wires so it sits around 3 metres above the floor.
- Keep clear of roller doors and racking. Measure the door track and anything that moves before you mark out the grid on the ceiling.
- Plan the power before the light. Check where your power point is and ask us about the power setup for the kit you choose. If you need a new power point or a wall switch, a licensed electrician can add one.
- Use a long or linear kit in a narrow shed. Long and linear grids suit sheds that are deep but not wide.
- Make the shed a space you want to be in. A hexagon grid turns a man cave, home gym or detailing shed into a feature, not just a workroom.
- Check for the RCM mark. Whatever you buy, look for the RCM mark and an Australian supplier, so you know the fitting is approved for sale here.
To compare kit sizes for your shed, browse our LED shed lights range.
The Fastest Way to Get Your Shed Right
Measure your shed floor area, then match kit footprint to that area using the table in the "What We Do" section. As a starting point: a 5-grid (2.4m x 1.65m) suits a small backyard shed, an 11-grid or 14-grid fits a typical 18 to 22m² Aussie workshop shed, a 23-grid covers a 30m²+ double-bay workshop, and the 39-grid (5.3m x 5.0m) is our largest single-kit option for commercial-scale sheds. Default colour temperature is 6500K daylight. Single-lead kits plug into a power point, and any hardwiring is done by a licensed electrician. Browse the full range on our shed lighting solutions page. If you also run a garage workshop, the garage LED lighting range uses the same housing and install pattern.
Frequently Asked Questions
What is the best type of lighting for a shed?
For most Aussie sheds, LED is the clear winner. Within LED, the best pick depends on how you use the space. For a storage shed you mostly walk in and out of, a pair of LED battens is fine. For a workshop shed where you sand, cut, or paint, a grid-based system like HexSpace hexagon lights gives cleaner coverage and fewer shadows than any single-point batten or panel.
How many lumens do I need for a shed?
Design lumen targets for Aussie sheds: 200 lm/m² for storage-only, 400 to 600 lm/m² for general DIY, 1,000 to 1,500 lm/m² for workshop and bench tasks, and 1,500 to 2,000+ lm/m² for detailing, painting, or close inspection. These are HexSpace design targets, set on the generous side because Colorbond and timber sheds reflect less light than painted interiors. A 20m² workshop shed therefore needs roughly 20,000 to 30,000 design lumens, which a single 14-grid kit covers; step up to a 23-grid for detailing or paint work.
What size hexagon kit suits my shed?
Match kit footprint to shed floor area. HexSpace's six core kits are 5-grid (2.4m x 1.65m), 8-grid (2.4m x 2.6m), 11-grid (3.3m x 2.4m), 14-grid (4.1m x 2.4m), 23-grid (4.2m x 3.9m), and 39-grid (5.3m x 5.0m). Pair two smaller kits for elongated sheds.
Can I use plug-in lights in my shed?
Yes. Our kits support both plug-in and hardwire installation. Kits with a single power lead come with a plug lead as standard, so once the grid is assembled and fixed in place, you can plug it into a power point and switch it on. How a kit connects depends on its size and your space, so ask us about the power setup for the kit you choose. If you want the lights hardwired into your wiring, that must be done by a licensed electrician to meet AS/NZS 3000 wiring rules.
Are LED lights safe for sheds without insulation?
Quality LED lights with aluminium housing handle uninsulated Colorbond and timber sheds well. The aluminium dissipates heat, which is critical when summer shed temperatures in Queensland and NT can hit 55°C at the ceiling. Cheap plastic-housing kits warp and fail in those conditions. HexSpace aluminium-housing kits carry SAA and RCM certification and are engineered for Australian shed conditions.
Last reviewed: October 2026. This article is written and published by the HexSpace team. We design and supply premium hexagon LED lighting systems for the Australian and New Zealand market, with our kits built to meet local SAA and RCM compliance standards. Product dimensions and colour temperature options in this article are taken from our current product listings. Lux and lumen figures are HexSpace design guidance for Australian sheds; actual results vary with ceiling height, wall colour and layout. Where we recommend HexSpace products, it's because we believe they're the right fit for the problem being discussed. If you have questions about the right kit for your shed, our team is happy to help.
