Storage sheds get the worst lighting on the property. The house gets downlights, the garage gets a batten, and the shed out the back gets whatever was left in the drawer, usually a single bulb or nothing at all. Then you spend ten minutes with a phone torch looking for the whipper snipper cord. This guide covers storage shed lighting properly: what garden sheds and tool sheds actually need, when solar makes sense, when it does not, and how modular hexagon LED lights fit sheds that deserve better than a bare bulb.

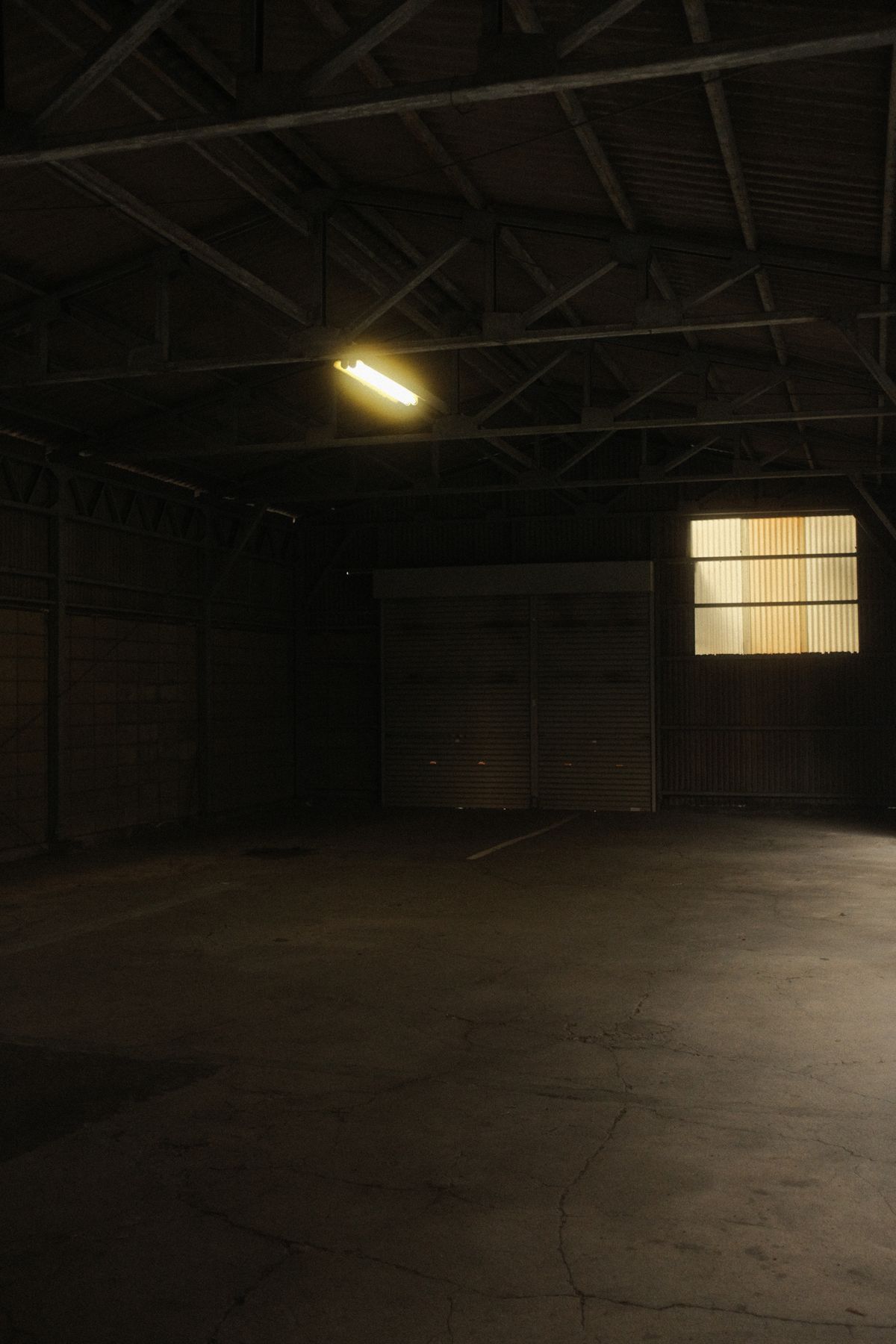

Typical shed lighting: one weak batten and a floor full of shadow.
Example HexSpace installation: the same style of steel shed under a hexagon grid.
The Problem: Why Storage Sheds Get the Leftover Lighting
Most Aussie garden sheds and tool sheds were never wired with lighting in mind. If power exists at all, it is usually one power point fed from the house, added years after the slab went down. So the lighting ends up being whatever plugs in or sticks on: a battery puck light, a leftover work lamp, a solar light from the hardware store clearance bin.
The result is the same in every backyard. You can see the middle of the shed and nothing else. Shelves sit in their own shadow. Labels are unreadable. Anything stored below waist height disappears after sunset. None of this is a hardware failure. It is a sizing failure: the light was never matched to the space.
Storage Shed Problems We Hear About Every Week
These are the patterns that come up again and again in customer enquiries about garden shed and storage shed lighting.
- "There is one bulb in the middle and the corners are black." A single point source cannot light shelving along the walls. The shelves face away from the bulb, so every rack casts its own shadow.
- "My solar shed light dies by 8pm in winter." Small solar units store very little energy. Short winter days and shaded rooflines cut their run time exactly when you need light most.
- "I only have one power point and it runs the mower charger." Most sheds are wired for one double GPO. Any lighting fix has to share that outlet, which rules out anything hardwired unless a sparky gets involved.
- "Battery puck lights keep falling off and going flat." Adhesive pads let go in summer heat, and loose battery lights become another thing to maintain in a space meant to reduce clutter.
- "The shed is fine for storage but useless for potting or repairs." Storage-level light is nowhere near bench-level light. If you also pot plants, sharpen tools, or fix things in there, the lighting needs jump sharply.
How to Choose Storage Shed Lighting Step by Step
1. Decide What the Shed Actually Does
Storage-only sheds need far less light than working sheds. Be honest about the second category. If a potting bench, a vice, or a mower service happens in there even once a month, size for the bench, not the boxes.
2. Get the Brightness Right (Think in Lux)
Lighting design measures the light that actually lands on your shelves and bench in lux. Storage-only sheds need modest levels, roughly 80 to 160 lux, enough to read labels and find tools quickly. General DIY sits in the hundreds. Reserve 1,000 lux and up for fine work such as paint matching, soldering, or close inspection. Two shed quirks push the required installed output higher than those numbers suggest: dark Colorbond or timber walls absorb light instead of bouncing it back, and packed shelving creates shadows. That is why we size sheds generously. The full breakdown, including lumen tables by shed size, is in our Best Shed Lighting in Australia guide.
3. Colour Temperature and CRI
We recommend 6500K daylight as the default for storage sheds. It is a crisp, cool white, close to midday daylight, and it makes labels and small parts easy to pick out. One point worth separating: colour temperature sets the tone of the light, while colour accuracy comes from CRI (Colour Rendering Index). HexSpace kits use high-CRI LEDs, so paint tins, wire colours, and timber finishes read true. Kits ship in four separate fixed colour options, 3000K, 4000K, 5000K, and 6500K, and you choose the tone once at purchase. Warmer tones suit hybrid office-sheds and display rooms; for pure storage, 6500K is the practical pick.
4. Sort the Power Question
This decides everything else, so answer it early.
- Shed has a power point: you are set. A plug-in LED system with an earthed 3-pin plug mounts to the ceiling, plugs into the GPO, and delivers full mains-level light. No rewiring involved.
- Shed has mains but you want a wall switch: our kits also support hardwired installation. For any hardwire connection we recommend a licensed sparky.
- Shed has no power: solar shed lights or battery lights handle quick visits, and a battery bank with a low-voltage kit covers occasional bench work. For a shed you use regularly, the best long-term fix is having a sparky run a circuit, which unlocks proper lighting and charging in one job.
5. Mount It at the Right Height
Nearly every garden and storage shed has a ceiling at 4m or lower, so surface-mounting the kit straight to the ceiling is the default and simplest install. Taller farm and commercial sheds with roofs above 4m use a suspension wire kit to bring the lights down closer to the working zone, at roughly 3m above the floor.
Which Kit Fits Your Shed
Match the kit footprint to your ceiling area, and go one size up if your walls are dark Colorbond or bare timber. For very small tool sheds, compact 2 to 4 grid options like the 2-Grid LED System cover the essentials. From there, the core ladder runs:
| HexSpace kit | Footprint | Best for shed area | Typical storage use case |
|---|---|---|---|
| 5-Grid LED System | 2.4m x 1.6m | 6 to 10m² | Garden shed, tool shed |

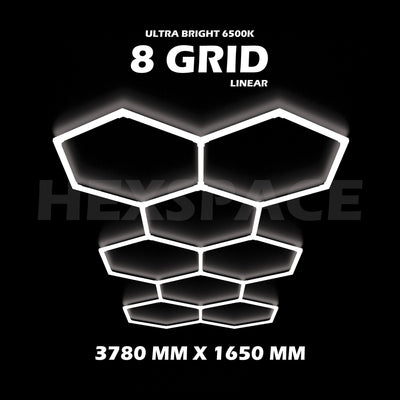

| 8-Grid LED System | 2.4m x 2.6m | 10 to 14m² | Larger garden shed with shelving on both walls |
| 11-Grid LED System | 3.3m x 2.4m | 14 to 18m² | Storage shed with a potting or repair bench |
| 14-Grid LED System | 4.0m x 2.4m | 18 to 25m² | Large storage shed or single-bay space |
| 23-Grid LED System | 4.2m x 3.9m | 25 to 35m² | Double-bay storage or mixed-use shed |
| 39-Grid LED System | 5.3m x 5.0m | 35m² and up | Commercial or farm storage shed |
Paired kits cover elongated sheds that a single footprint cannot.
Why HexSpace
We are HexSpace, an Australian hexagon lighting specialist serving Australia and New Zealand. HexSpace is an Australian-registered Responsible Supplier (EESS E20158). Our imported lighting systems are SAA certified and RCM compliant, with aluminium housing designed for demanding shed environments. Each kit ships with a long 3-pin earthed plug and is rated for over 50,000 hours. Poorly documented or non-compliant products can create unnecessary safety, compliance, and insurance risks.
For a storage or garden shed, the realistic alternatives are solar units, battery lights, or a single LED batten. Each has a place. Here is the honest comparison.
| Option | Best for | Watch out for |
|---|---|---|
| Solar shed light | Sheds with zero power access | Low output, short winter run time, panel needs sun |
| Battery puck lights | Renters, temporary setups | Constant battery swaps, adhesive fails in heat |
| Single LED batten | Narrow sheds with one shelf wall | Hard shadows behind shelving on the far side |
| HexSpace hexagon system | Any powered shed you open more than once a week | Higher upfront cost than a battery light |
If your shed has power, or you are willing to have a sparky add it, the maths favours doing the job once. A compact kit from our shed lighting range installs in an afternoon and gives you decades of shed use without touching a battery.
Frequently Asked Questions
What is the best lighting for a garden shed?
For a garden shed with power nearby, a compact plug-in LED system is the most practical pick. It gives you instant, bright, even light without rewiring. If the shed has no power at all, solar shed lights work for quick visits, but their output is low and fades on cloudy days. For a shed you actually work in, a mains-powered LED system such as a small hexagon kit is the more reliable option.
How do I light a shed without electricity?
You have three realistic options. Battery or solar shed lights are the cheapest and suit walk-in storage where you just need to find things. A battery bank with a low-voltage LED kit gives more usable light for occasional bench work. If you plan to use the shed regularly, the best long-term answer is asking a licensed sparky to run a proper circuit, which opens up full-strength mains LED lighting.
Are plug-in LED lights enough for a storage shed?
Yes. If your shed has a power point, a plug-in LED system will comfortably light a storage shed. HexSpace kits ship with a long 3-pin earthed plug, cable, and ceiling clips, so you can surface-mount the frames and plug straight into the existing outlet. Hardwiring to a wall switch is also supported, and for that we recommend a licensed sparky.
What size hexagon kit suits a small storage shed?
For most garden and tool sheds up to about 10 square metres, a 5-Grid system (2.4m x 1.6m footprint) is the usual starting point, and compact 2 to 4 grid options suit very small sheds. From 10 to 14 square metres an 8-Grid fits well, and larger mixed storage sheds step up to the 11-Grid or 14-Grid. Match the kit footprint to your ceiling area and go one size up if your walls are dark Colorbond or bare timber.
Ready to stop searching your own shed by torchlight?
See the Hexagon Lights Range Installation Guide Get a Custom QuoteLast reviewed: July 2026. Kit footprints and colour temperature options in this article are taken from our current product listings, and lux guidance follows the recommendations in our shed lighting guide, adjusted for low-reflectance shed interiors. The before photo is a royalty-free stock image showing a typical under-lit shed; the after photo is an example HexSpace installation in a steel shed. This article is written and published by the HexSpace team. We design and supply hexagon LED lighting systems for the Australian and New Zealand market. Our imported systems are SAA certified and RCM compliant, and HexSpace is an Australian-registered Responsible Supplier (EESS E20158). Where we recommend HexSpace products, it is because we believe they are the right fit for the problem being discussed. If you have questions about the right kit for your shed, feel free to contact us.
